6 跨时钟域传输

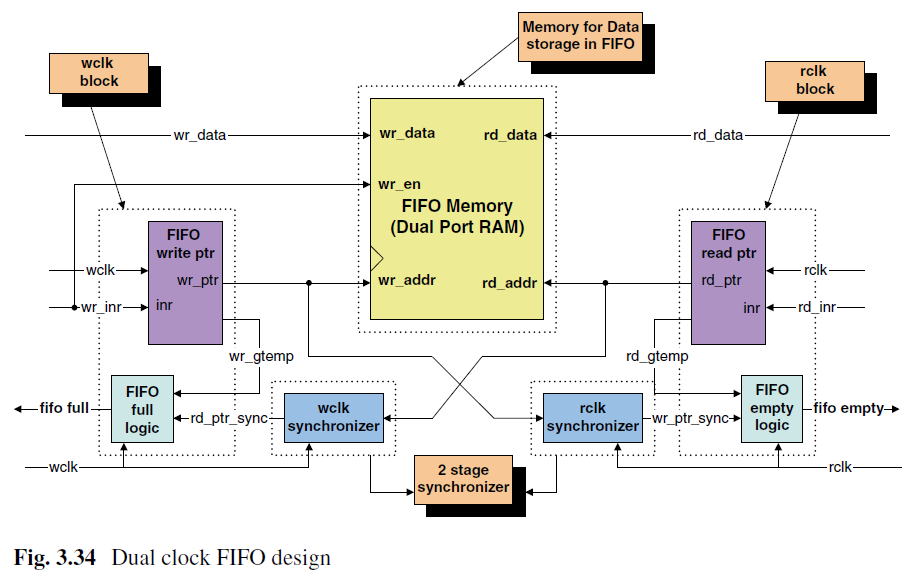

VL45 异步FIFO

很经典的手撕题，这道题要求产生的格雷码要在本时钟域中打一拍，其实不打也没关系。

 主要要记住

1、bin2gray的方法：右移一位与移位前异或；

2、格雷码比较方法：空：读指针格雷码和写指针同步过来的格雷码相同；满：写指针格雷码高两位与读指针同步过来的格雷码正好相反，低位相同。

`timescale 1ns/1ns

/***************************************RAM*****************************************/
module dual_port_RAM #(parameter DEPTH = 16,
                       parameter WIDTH = 8)(
     input wclk
    ,input wenc
    ,input [$clog2(DEPTH)-1:0] waddr  //深度对2取对数，得到地址的位宽。
    ,input [WIDTH-1:0] wdata          //数据写入
    ,input rclk
    ,input renc
    ,input [$clog2(DEPTH)-1:0] raddr  //深度对2取对数，得到地址的位宽。
    ,output reg [WIDTH-1:0] rdata         //数据输出
);

reg [WIDTH-1:0] RAM_MEM [0:DEPTH-1];

always @(posedge wclk) begin
    if(wenc)
        RAM_MEM[waddr] <= wdata;
end

always @(posedge rclk) begin
    if(renc)
        rdata <= RAM_MEM[raddr];
end

endmodule

/***************************************AFIFO*****************************************/
module asyn_fifo#(
    parameter    WIDTH = 8,
    parameter     DEPTH = 16
)(
    input                     wclk    ,
    input                     rclk    ,
    input                     wrstn    ,
    input                    rrstn    ,
    input                     winc    ,
    input                      rinc    ,
    input         [WIDTH-1:0]    wdata    ,

    output wire                wfull    ,
    output wire                rempty    ,
    output wire [WIDTH-1:0]    rdata
);
parameter ADDR_WIDTH = $clog2(DEPTH);
reg [ADDR_WIDTH:0]waddr,raddr;//多一位用于比较空满
always@(posedge wclk or negedge wrstn)
begin
    if(~wrstn)
        waddr <= "d0;
    else if(winc&&~wfull)
        waddr <= waddr + 1;
end
always@(posedge rclk or negedge rrstn)
begin
    if(~rrstn)
        raddr <= "d0;
    else if(rinc&&~rempty)
        raddr <= raddr + 1;
end
reg [ADDR_WIDTH:0]waddr_gray,raddr_gray;//格雷码
reg [ADDR_WIDTH:0]waddr_gray_sync1,raddr_gray_sync1;//打一拍后
reg [ADDR_WIDTH:0]waddr_gray_sync2,raddr_gray_sync2;//打两拍后
/*bin2gray*/
// always@(*)
// begin
//     waddr_gray = (waddr>>1)^waddr;
//     raddr_gray = (raddr>>1)^raddr;
// end
always@(posedge wclk or negedge wrstn)
begin
    if(~wrstn)
        waddr_gray <= "d0;
    else
        waddr_gray <= (waddr>>1)^waddr;
end
always@(posedge rclk or negedge rrstn)
begin
    if(~rrstn)
        raddr_gray <= "d0;
    else
        raddr_gray <= (raddr>>1)^raddr;
end
/*把格雷码打两拍传输*/
always@(posedge wclk or negedge wrstn)
begin
    if(~wrstn)begin
        raddr_gray_sync1 <= "d0;
        raddr_gray_sync2 <= "d0;
    end else begin
        raddr_gray_sync1 <= raddr_gray;
        raddr_gray_sync2 <= raddr_gray_sync1;
    end
end
always@(posedge rclk or negedge rrstn)
begin
    if(~rrstn)begin
        waddr_gray_sync1 <= "d0;
        waddr_gray_sync2 <= "d0;
    end else begin
        waddr_gray_sync1 <= waddr_gray;
        waddr_gray_sync2 <= waddr_gray_sync1;
    end
end
/*空满判断*/
assign wfull = (waddr_gray[ADDR_WIDTH:ADDR_WIDTH-1]==~raddr_gray_sync2[ADDR_WIDTH:ADDR_WIDTH-1])&&(waddr_gray[ADDR_WIDTH-2:0]==raddr_gray_sync2[ADDR_WIDTH-2:0]);

assign rempty = (raddr_gray==waddr_gray_sync2);

dual_port_RAM #(.WIDTH(WIDTH),.DEPTH(DEPTH))
U0(
    .wclk(wclk),
    .wenc(winc&&~wfull),
    .waddr(waddr[ADDR_WIDTH-1:0]),
    .wdata(wdata),
    .rclk(rclk),
    .renc(rinc&&~rempty),
    .raddr(raddr[ADDR_WIDTH-1:0]),
    .rdata(rdata) );
endmodule
